AIRMOVE Mobile Fan
Large Mobile Fan

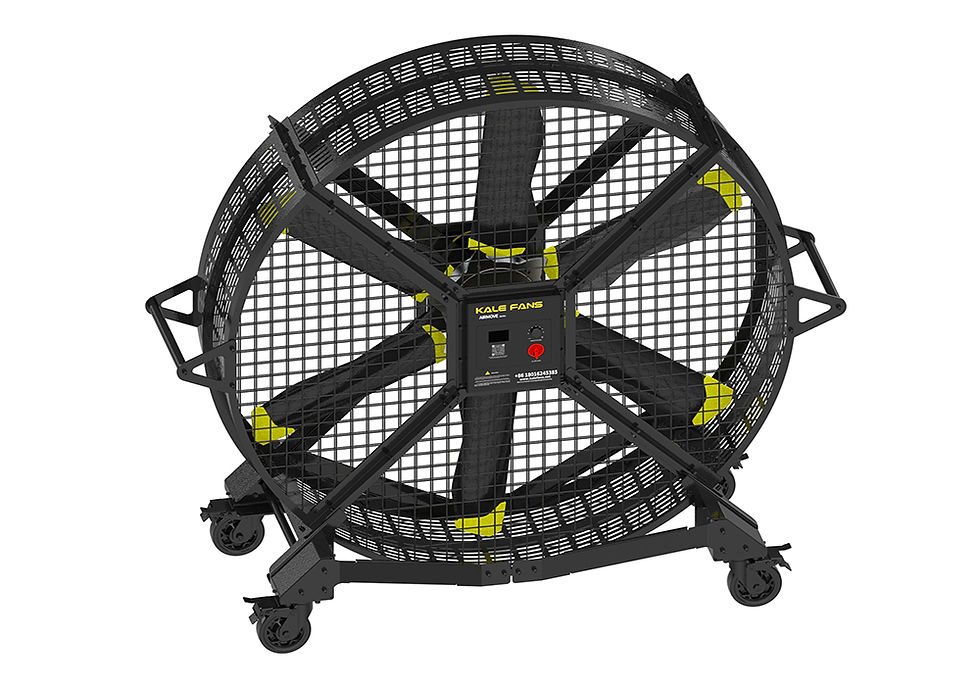

The AIRMOVE HVLS Portable Fan is a 2-meter diameter energy-saving portable fan with a PMSM motor, providing an impressive airflow distance of over 18m. Designed with four wheels for easy mobility, it operates at a low 0.4KW power consumption, emitting only 43dB of noise. With IP55 waterproofing, it's suitable for rainy days, easy to clean, and user-friendly with VFD stepless speed control. The fan features high-strength materials, brilliant fluorocarbon paint, efficient heat transmission, and a 15-year service life. The PMSM motor ensures safety and durability, and SKF bearings enhance performance and reduce noise.
.jpg)
Parameter:
SKF Bearing
SKF Explorer reinforced bearing. Higher rated load, lower noise, greatly increase running time of the machine.
Model
Size
Air Volume
Max Speed
Fan Weight
Power
Full Load Current
Noise Level
Protection level
SHVLS-Y6BAA20
2181X2051X722 mm
1208 m³/min
320 RPM
176 kg
0.55kW
2.7 Amps/220V
<43.0 dB (A)
IP55
SHVLS-Y6BAA16
1881X1744X722 mm
723 m³/min
360 RPM
152 kg
0.36kW
2.0 Amps/220V
<43.0 dB (A)
IP55
Applications
The AIRMOVE fan is extremely versatile, catering to diverse environments:
-
Sports Industry: Fitness centers, gyms
-
Entertainment: Amusement parks, zoos, playgrounds
-
Traffic Hub: Airports, rail/bus/metro stations, wharves
-
Commercial Places: Exhibition centers, car showrooms, markets, supermarkets
.jpg)
PMSM Motor
Kale Airmove PMSM motor, adopt simulation technology to design the best solution to meet the temperature rise demand; Optimize the transmission efficiency and structural design, reduce the stress level, and the joint of the connecting structure is designed with multiple safety protection measures to ensure the safety of the PMSM motor for a long time. PMSM motor adopts vacuum immersion process to guarantee the insulation of immersion paint. The error is only ±10μm in order to ensure the overall performance, dynamic balance and durability of the rotor disc, etc.
.jpg)
Control System
Adopt high performance vector and high frequency carrier technology to make the fan start smoothly and run noiseless. Long life devices escort: digital potentiometer, knob switch, electrolytic capacitor and other simple operation, easy to use: save energy, effort and time!
.jpg)
Fan Blade
The product blade adopts the wavy streamline shape design, the European and American designers participate in the international shape design, the fan can use a variety of color collocation to meet the needs of different customer environment.
