AIRFREE (Wall Mounted Fan)

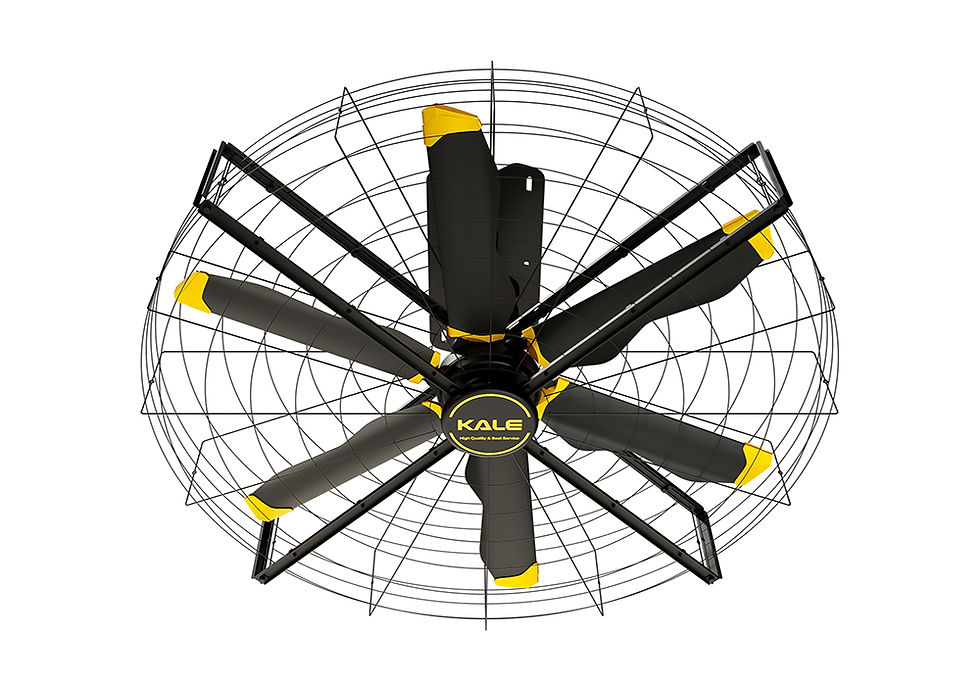

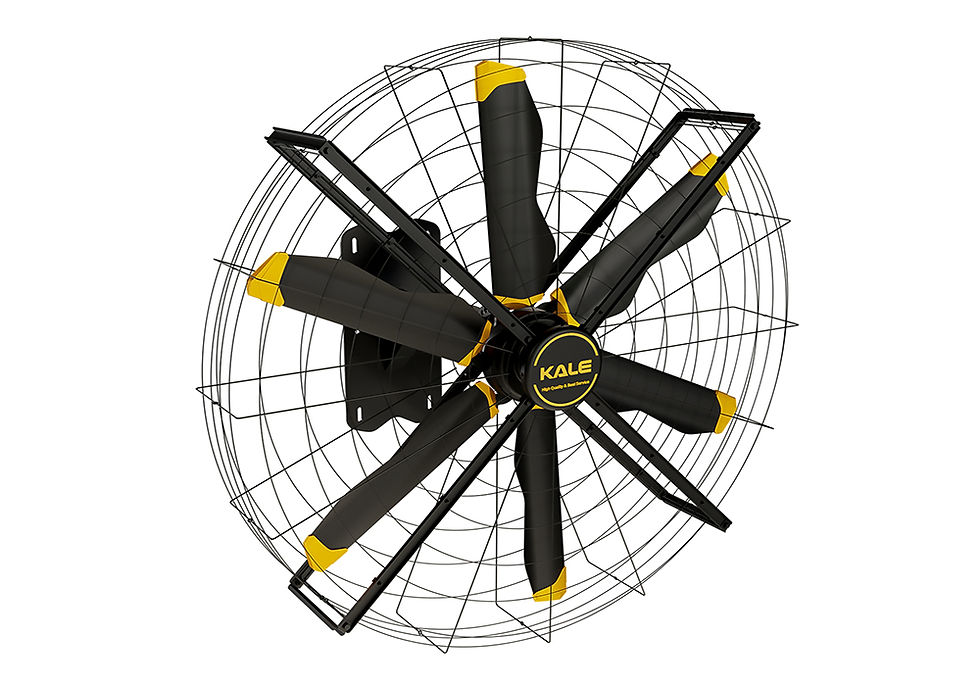

AIRFREE Wall Mounted Fan

Wall Mounted

The Airfree fan presents a wall-mounted energy-saving fan featuring a PMSM motor with a diameter of 2m, providing an impressive airflow with an effective distance of up to 36m—covering an entire basketball court. Designed for industrial, commercial, and stock farming spaces, it boasts high-strength materials, brilliant fluorocarbon paint finish, and a turbine air suction effect for enhanced heat dissipation. The PMSM motor ensures safety and durability, while the control system prioritizes smooth and noiseless operation. The wavy streamline-shaped fan blade, SKF bearings, and cost-effective production contribute to its long-lasting performance and reliability.

Enquiry

PMSM Motor

Kale Airfree PMSM motor, adopt simulation technology to design the best solution to meet the temperature rise demand; Optimize the transmission efficiency and structural design, reduce the stress level, and the joint of the connecting structure is designed with multiple safety protection measures to ensure the safety of the PMSM motor for a long time. PMSM motor adopts vacuum immersion process to guarantee the insulation of immersion paint.

Control System

Yunzhi Controller is specifically designed and tuned for HVLS fans.It is also an integrated controller with a variety of advantages such as elegant appearance, user-friendly, and energy-saving. Moreover,It can be linked to systems such as on-site BMS or fire alarms via multiple open wiring ports. The following further functions & features can be archieved by working with the KALE FANS Smart platform:
1.Individual/Group Management of fans includes Run/Stop, Speed adjustment and so on;
2.There is no limit to the number of fans that can be controlled;
3.Diverse functions: Timing Function(countdown/daily/weekly), Temperature and Humidity control;
4.Improvement of Fan management efficiency & Reduction in management costs.

Fan Blade

The product blade adopts the wavy streamline shape design, the European and American designers participate in the international shape design, the fan can use a variety of color collocation to meet the needs of different customer environment.

Installation Condition:

AIRFREE offers versatile installation options to suit your unique needs. Whether you prefer a beam bottom positioning or a pillar positioning, our fan can be installed to accommodate your specific space and preferences.

Our skilled engineering team, proficient in electricity, mechanics, and architecture, tailors personalized installation plans based on stress analysis for various structures. We prioritize strict adherence to installation standards, ensuring a professional and doubt-free process.

Parameter:

SKF Bearing

SKF Explorer reinforced bearing. Higher rated load, lower noise, greatly increase running time of the machine.

Model

Size

Air Volume

Max Speed

Fan Weight

Power

Full Load Current

Noise Level

Protection level

SHVLS-G6BAA20

1980x1881x374 mm

1208 m³/min

320 RPM

136 kg

0.55kW

2.7 Amps/220V

<43.0 dB (A)

IP55

Key Features:

1. Tailored installation plans

2. Utilization of a well-equipped lift truck

3. Extensive experience in leveling, height adjustment, and balance calibration

4. Dynamic balance testing for steady operation

5. Precision fastening with torque-standardized fasteners

6. Clear and scientifically guided installation processes
